In silico correction of blocked array using RTB and REFoCUS

Creating the simulated results in the paper:

A.E. Vrålstad, S.-E. Måsøy, T.G. Bjåstad, A.R. Sørnes and O.M.H. Rindal, "Retrospective transmit correction of blocked arrays applied to cardiac ultrasound imaging" in XX. doi:YY.ZZZZ/XX.QQQQQQQQ.

This script creates Fig.3-4 in the paper.

This code uses the UltraSound ToolBox (USTB) and you'll need to download it first to successfully rund this code. To know more about the USTB visit http://www.ustb.no/

by Anders E. Vrålstad and Ole Marius Hoel Rindal

Contents

Clear environment

clear all; close all;

Load data

Read the data, poentitally download it

url='http://ustb.no/datasets/';      % if not found downloaded from here
local_path = [ustb_path(),'/data/']; % location of example data
addpath(local_path);

% Choose dataset
%filename='speckle_sim_FI_P4_probe_apod_1_speckle_long_many_angles.uff'; tag = 'full';
%filename='speckle_sim_FI_P4_probe_apod_2_speckle_long_many_angles.uff'; tag = 'third';
filename='speckle_sim_FI_P4_probe_apod_3_speckle_long_many_angles.uff'; tag = 'half';
tools.download(filename, url, data_path);

% Check if the file is available in the local path or downloads otherwise
channel_data = uff.read_object([data_path, filesep, filename],'/channel_data');
channel_data.data = channel_data.data./max(channel_data.data(:));

storefolder = ['./Figures/simulated_gCNR_',tag, '/'];
mkdir(storefolder);

UFF: reading channel_data [uff.channel_data]
UFF: reading sequence [uff.wave] [====================] 100%
Warning: Directory already exists.

Run REFoCUS preprocess

tic
REFoCUS = preprocess.refocus();
REFoCUS.input = channel_data;
REFoCUS.use_filter = 0;
REFoCUS.filter_N = 10;
REFoCUS.filter_Wn = [0.05,0.4];
REFoCUS.regularization = @Hinv_tikhonov;
REFoCUS.decode_parameter = 0.01;
REFoCUS.post_pad_samples = 0;
channel_data_REFoCUS = REFoCUS.go();
toc()

This is citationware. If you use REFoCUS in your publication, please cite
Ali, R., Herickhoff, C. D., Hyun, D., Dahl, J. J., & Bottenus, N. (2020). Extending RetrospectiveEncoding for Robust Recovery of the Multistatic Data Set. IEEE Transactions on Ultrasonics,Ferroelectrics, and Frequency Control, 67(5), 943–956. https://doi.org/10.1109/TUFFC.2019.2961875Original REFoCUS code from www.github.com/nbottenus/REFoCUS
Starting to REFoCUS channel data...Completed in 27.0733 seconds.
Elapsed time is 27.144130 seconds.

Create Sector scan

depth_axis=linspace(0e-3,110e-3,512).';
azimuth_axis=zeros(channel_data.N_waves,1);
for n=1:channel_data.N_waves
    azimuth_axis(n) = channel_data.sequence(n).source.azimuth;
end
scan=uff.sector_scan('azimuth_axis',azimuth_axis,'depth_axis',depth_axis);

RTB Beamforming

Calculate F-number

Fnumber = channel_data.sequence(1).source.distance/(max(channel_data.probe.x)*2);

mid=midprocess.das();
mid.channel_data=channel_data;
mid.dimension = dimension.both();
mid.scan=scan;
mid.code = code.mex;
mid.receive_apodization.window=uff.window.boxcar;
mid.receive_apodization.f_number=1.7;
mid.transmit_apodization.window=uff.window.hamming;
mid.transmit_apodization.f_number=Fnumber;
mid.transmit_apodization.minimum_aperture = 3e-3;
b_data_RTB = mid.go();
b_data_RTB.frame_rate = 20;
b_data_RTB.plot([], 'RTB');

USTB MEX C beamformer...Completed in 0.76 seconds.

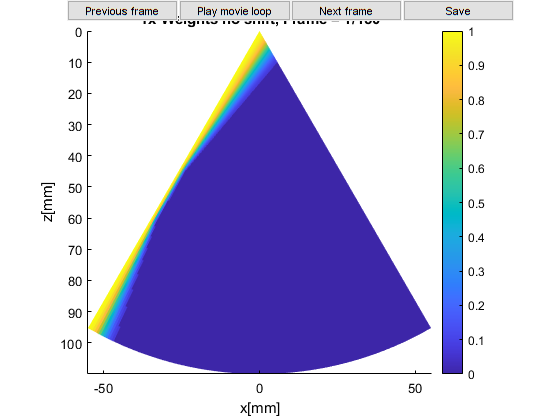

Store the Original RTB weights for plotting later

b_data_tx_apod = uff.beamformed_data(b_data_RTB);
b_data_tx_apod.data = mid.transmit_apodization.data;
b_data_tx_apod.plot([],['Tx Weights no shift'],[],'none');
colormap default;

Change beam geometry for RTB processing

switch tag
    case 'full'
        origin_x = 0;
    case 'third'
        origin_x = max(channel_data.probe.x)*(2*2/3-1);
        Fnumber = Fnumber*3/2;
    case 'half'
        origin_x = max(channel_data.probe.x)*0.5;
        Fnumber = Fnumber*2;
end
channel_data_shifted = uff.channel_data(channel_data);
for seq = 1:channel_data_shifted.N_waves
    channel_data_shifted.sequence(seq).origin.x = origin_x;
end
mid.channel_data = channel_data_shifted;
mid.transmit_apodization.f_number=Fnumber;
b_data_RTB_comp = mid.go();
b_data_RTB_comp.frame_rate = 20;

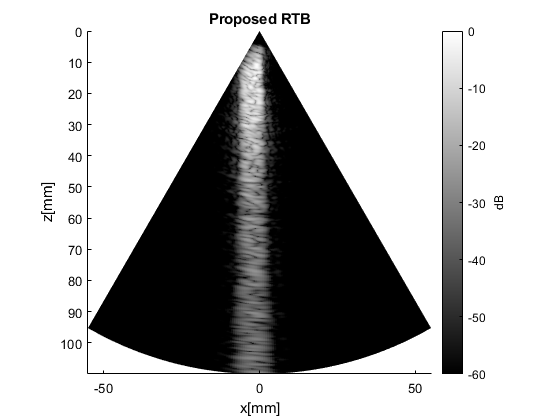

b_data_RTB_comp.plot([],'Proposed RTB');

USTB MEX C beamformer...Completed in 0.42 seconds.

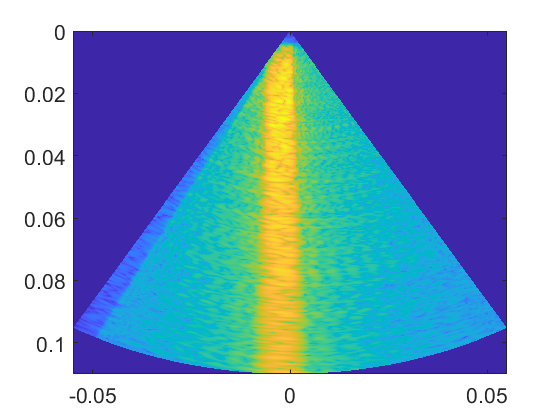

Store the Compensated RTB weights for plotting later

b_data_tx_apod = uff.beamformed_data(b_data_RTB_comp);
b_data_tx_apod.data = mid.transmit_apodization.data;
b_data_tx_apod.plot([],['Tx Weights with shift'],[],'none');
colormap default;

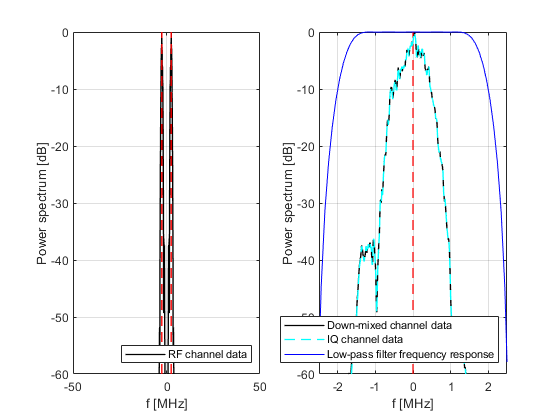

Demodulate REFoCUS RF-data before DAS

demod = preprocess.fast_demodulation();
demod.modulation_frequency = 2.5*10^6;
demod.input = channel_data_REFoCUS;
demod.plot_on = true;
channel_data_STAI_demod = demod.go();

Warning: The downsampling frequency is not specified. Using 2 *
modulation_frequency.
Low-pass filtering

REFoCUS Beamforming

mid_REFoCUS = midprocess.das();
mid_REFoCUS.channel_data=channel_data_STAI_demod;
mid_REFoCUS.dimension = dimension.receive();
mid_REFoCUS.scan=scan;
mid_REFoCUS.code = code.mex;
mid_REFoCUS.transmit_apodization.window=uff.window.boxcar;
mid_REFoCUS.receive_apodization.f_number=1.7;
mid_REFoCUS.receive_apodization.window=uff.window.boxcar;
mid_REFoCUS.transmit_apodization.f_number=1;
b_data_delayed_REFoCUS = mid_REFoCUS.go();
b_data_delayed_REFoCUS.plot([],'REFoCUS');
cc = postprocess.coherent_compounding;
cc.input = b_data_delayed_REFoCUS;
b_data_REFoCUS = cc.go();

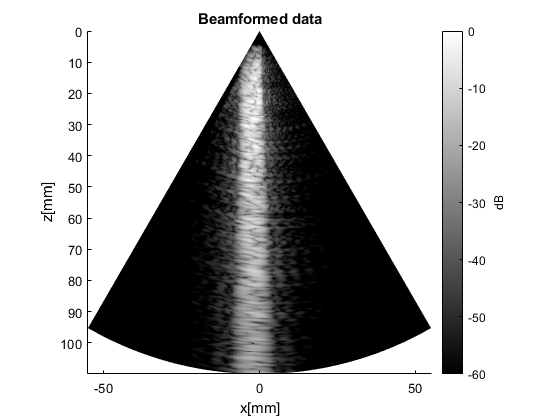

b_data_REFoCUS.plot();

USTB MEX C beamformer...Completed in 0.71 seconds.

Save PNGs

f = figure;
b_data_RTB.plot(f,'RTB');
rectangle(gca,'Position',[-6 5 7 105],'EdgeColor','r','LineWidth',2)
clim([-60 0]);xlim([-20 20]);
savefig(f,[storefolder,'RTB_', tag,'.fig']);
saveas(f,[storefolder,'RTB_', tag,'.png']);

b_data_RTB_comp.plot(f,'RTB Compensated');
rectangle(gca,'Position',[-6 5 7 105],'EdgeColor','r','LineWidth',2)
clim([-60 0]);xlim([-20 20]);
savefig(f,[storefolder,'RTB_compensated_', tag,'.fig']);
saveas(f,[storefolder,'RTB_compensated_', tag,'.png']);

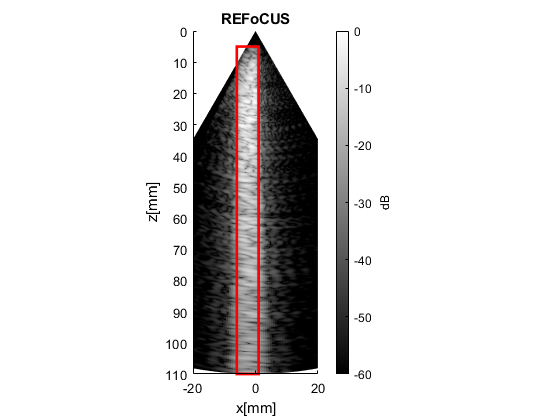

b_data_REFoCUS.plot(f,'REFoCUS');
rectangle(gca,'Position',[-6 5 7 105],'EdgeColor','r','LineWidth',2)
clim([-60 0]);xlim([-20 20])
savefig(f,[storefolder,'REFoCUS_', tag,'.fig']);
saveas(f,[storefolder,'REFoCUS_', tag,'.png']);

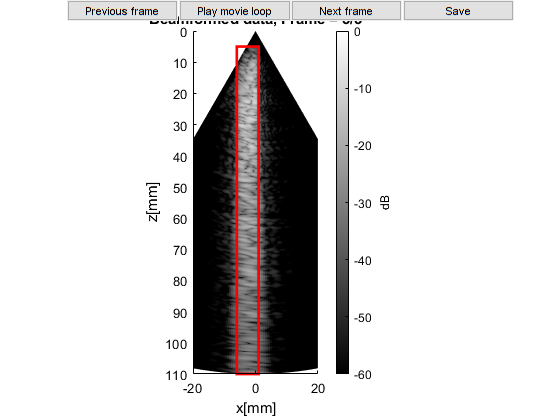

Save GIF

b_data_compare = uff.beamformed_data(b_data_RTB);
b_data_compare.data(:,1,1,1) = b_data_RTB.data./max(b_data_RTB.data(:));
b_data_compare.data(:,1,1,2) = b_data_RTB_comp.data./max(b_data_RTB_comp.data(:));
b_data_compare.data(:,1,1,3) = b_data_REFoCUS.data./max(b_data_REFoCUS.data(:))/3;

all_images = squeeze(b_data_compare.get_image());
b_data_compare.data(:,1,1,2) = b_data_compare.data(:,1,1,2) .* median(all_images(:,:,1)./all_images(:,:,2),'all','omitnan');
b_data_compare.data(:,1,1,3) = b_data_compare.data(:,1,1,3) .* median(all_images(:,:,1)./all_images(:,:,3),'all','omitnan');
b_data_compare.frame_rate = 1;
b_data_compare.plot([]); %title('1:RTB,2:Comp,3:REFoCUS')
rectangle(gca,'Position',[-6 5 7 105],'EdgeColor','r','LineWidth',2)
clim([-60 0]);xlim([-20 20]);
b_data_compare.frame_rate = 1;
b_data_compare.save_as_gif(['Figures/Comparison_',tag,'.gif']);

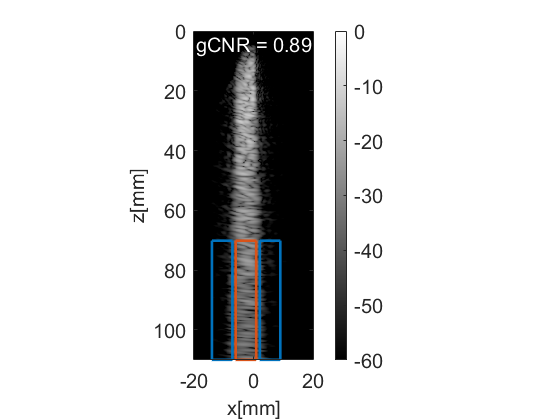

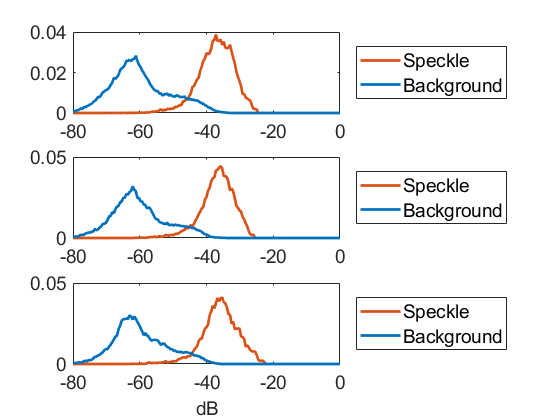

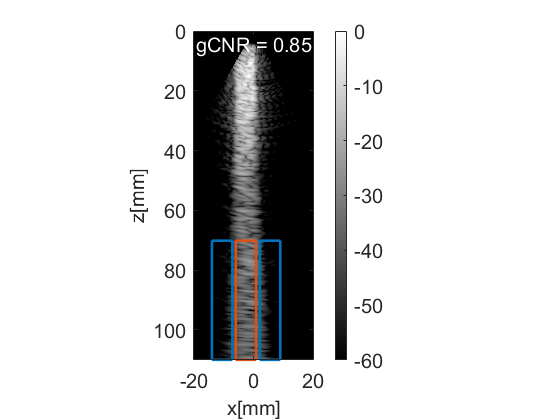

Measure contrast

[RTB_sc, Xs,Zs] = tools.scan_convert(b_data_RTB.get_image(),b_data_compare.scan.azimuth_axis,b_data_compare.scan.depth_axis, 1024,1024);
[RTB_comp_sc, Xs,Zs] = tools.scan_convert(b_data_RTB_comp.get_image(),b_data_compare.scan.azimuth_axis,b_data_compare.scan.depth_axis, 1024,1024);
[REFoCUS_sc, Xs,Zs] = tools.scan_convert(b_data_REFoCUS.get_image()-12,b_data_compare.scan.azimuth_axis,b_data_compare.scan.depth_axis, 1024,1024);
img_cell = {RTB_sc,RTB_comp_sc,REFoCUS_sc};
name_cell = {'RTB','RTB Compensated', 'REFoCUS'};
das_handle = figure(); imagesc(Xs,Zs,img_cell{3});


center_rectangle = [-0.006,0.07,0.007,0.04];
v1_area =drawrectangle('Position',center_rectangle-[0.008,0,0,0]);
v2_area =drawrectangle('Position',center_rectangle+[0.008,0,0,0]);
c_area =drawrectangle('Position',center_rectangle);

[GCNR, v1_binary, v2_binary, c_binary] = contrast_calc_insilico(img_cell,name_cell, Xs, Zs, das_handle, 60,storefolder,c_area,v1_area,v2_area);

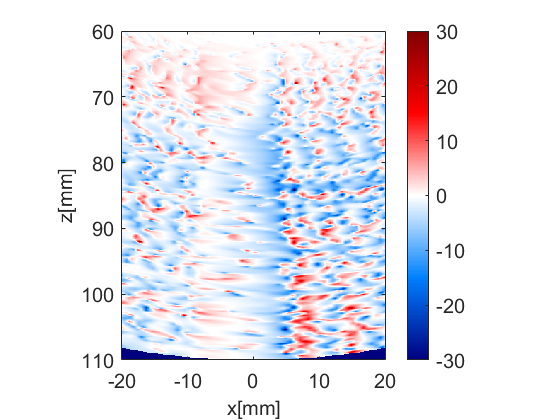

Make Difference Images: of RTBs

all_images = b_data_compare.get_image();
diff = all_images(:,:,2)-all_images(:,:,1)-1.6;
[diff_sc, Xs,Zs] = tools.scan_convert(diff, scan.azimuth_axis, scan.depth_axis,1024,1024);
f =figure;
imagesc(Xs*1e3,Zs*1e3,diff_sc,[-30,30]);colormap(bluewhitered);colorbar
xlabel('x[mm]')
ylabel('z[mm]')
axis image
xlim([-20,20]);
ylim([60,110]);
set(findall(gcf,'-property','FontSize'),'FontSize',15)
savefig(f,[storefolder,'RTBminusRTBcomp_',tag,'.fig']);
saveas(f,[storefolder,'RTBminusRTBcomp_',tag,'.png']);

Make Difference Images: RTB comp and REFoCUS

all_images = b_data_compare.get_image();
diff = all_images(:,:,3)-all_images(:,:,2)-7;
[diff_sc, Xs,Zs] = tools.scan_convert(diff, scan.azimuth_axis, scan.depth_axis,1024,1024);
f = figure();
imagesc(Xs*1e3,Zs*1e3,diff_sc,[-30,30]);colormap(bluewhitered);colorbar
xlabel('x[mm]')
ylabel('z[mm]')
axis image
xlim([-20,20]);
ylim([60,110]);

set(findall(gcf,'-property','FontSize'),'FontSize',15)
savefig(f,[storefolder,'REFoCUSminusRTBcomp_',tag,'.fig']);
saveas(f,[storefolder,'REFoCUSminusRTBcomp_',tag,'.png']);

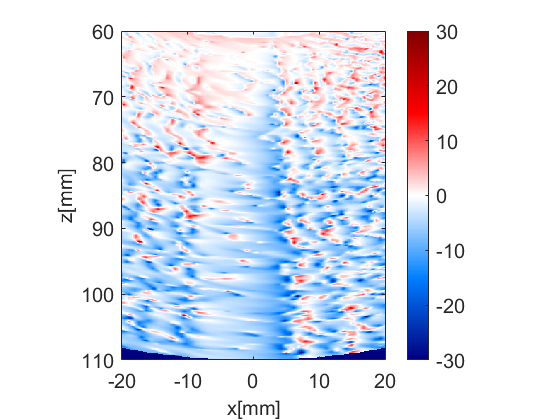

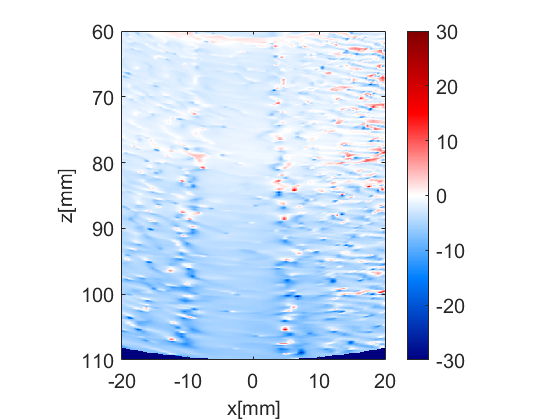

Make Difference Images: RTB and REFoCUS

all_images = b_data_compare.get_image();
diff = all_images(:,:,3)-all_images(:,:,1)-7;
[diff_sc, Xs,Zs] = tools.scan_convert(diff, scan.azimuth_axis, scan.depth_axis,1024,1024);
f = figure();
imagesc(Xs*1e3,Zs*1e3,diff_sc,[-30,30]);colormap(bluewhitered);colorbar
xlabel('x[mm]')
ylabel('z[mm]')
axis image
xlim([-20,20]);
ylim([60,110]);

set(findall(gcf,'-property','FontSize'),'FontSize',15)
savefig(f,[storefolder,'REFoCUSminusRTB_',tag,'.fig']);
saveas(f,[storefolder,'REFoCUSminusRTB_',tag,'.png']);

Published with MATLAB® R2024b
